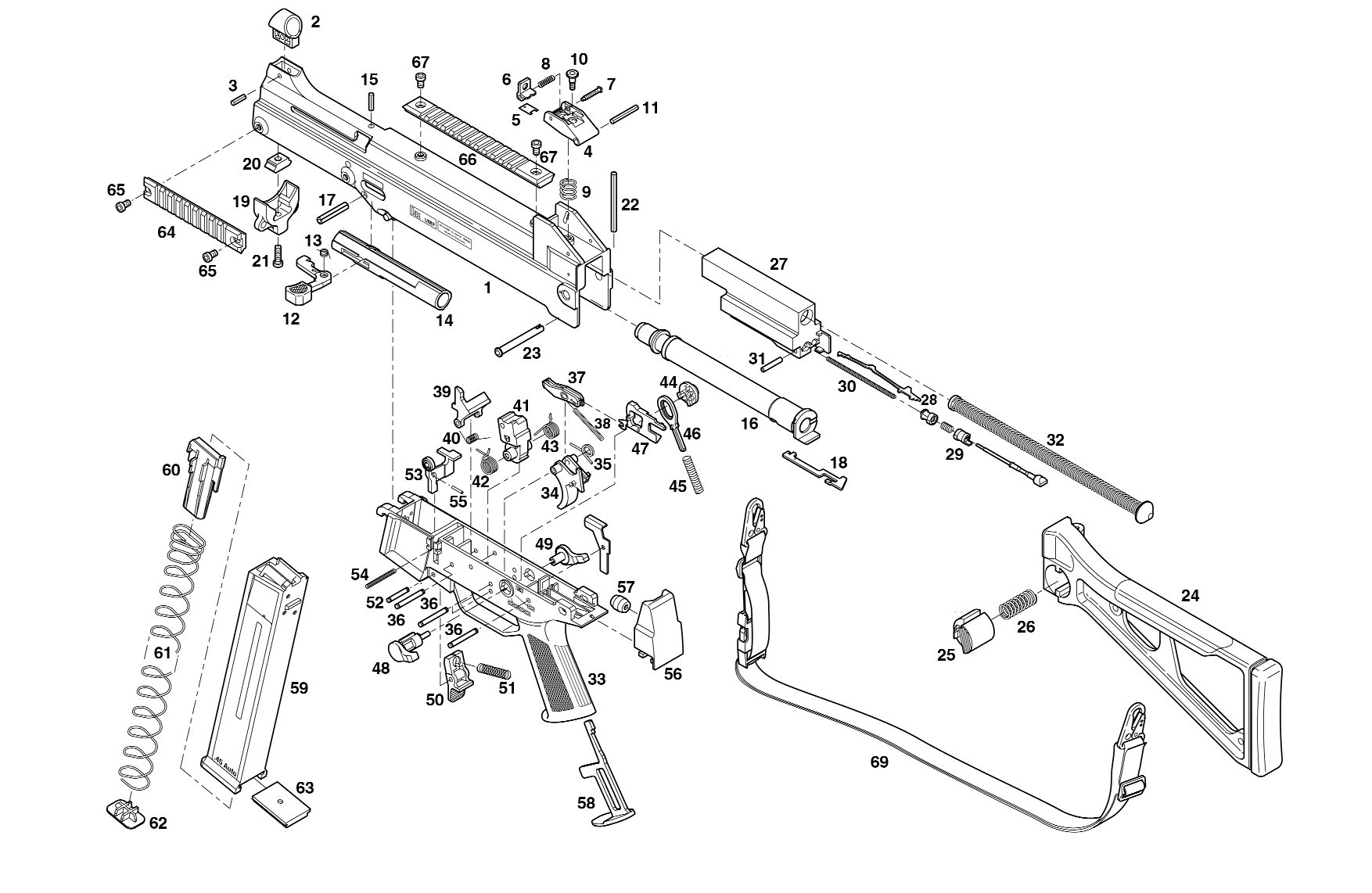

UMP零件图
1 | 上机匣 / Upper receiver | 2 | 准星 / Front sight | 3 | 准星固定销 / Roll pin, front sight | 4 | 照门底座 / Sight support |
5 | 弹簧片 / Flat spring | 6 | 照门 / Rear sight | 7 | 风偏调整螺杆 / Windage adjustment screw | 8 | 照门弹簧 / Rear sight spring |
9 | 照门底座弹簧 / Sight support spring | 10 | 仰角调整螺钉 / Elevation adjustment screw | 11 | 照门固定销 / Roll pin, sight support | 12 | 拉机柄 / Cocking lever |
13 | 拉机柄弹簧 / Cocking lever spring | 14 | 拉机柄连杆 / Cocking lever support | 15 | 拉机柄固定销 / Roll pin, cocking lever support | 16 | 枪管 / Barrel |
17 | 分解销 / Roll pin, barrel, 6 x 32mm | 18 | 抛壳挺 / Ejector | 19 | 护手 / Hand stop, incomplete | 20 | 固定螺柱的导引片 / Insert plate, handstop |
21 | Cylindrical screw, handstop 5 x16 mm | 22 | 枪托转轴 / Axle, buttstock | 23 | 分解销 / Locking pin, complete. | 24 | 枪托 / Buttstock, incomplete |
25 | 枪托折叠锁扣 / Buttstock lock | 26 | 折叠锁扣弹簧 / Spring for buttstock lock | 27 | 枪机 / Bolt , incomplete, | 28 | 抽壳钩 / Extractor |
29 | 击针组件 / Firing pin assembly, complete | 30 | 击针簧 / Firing pin spring | 31 | 击针止动销 / Firing pin retaining pin | 32 | 复进簧 / Recoil spring assembly, complete |
33 | 握把组件 / Pistol grip, incomplete | 34 | 扳机 / Trigger | 35 | 扳机簧 / Trigger spring | 36 | 轴 / Axle (3x) |
37 | 阻铁 / Sear | 38 | 阻铁簧 / Sear spring | 39 | Release lever | 40 | 空仓挂机释放弹簧 / Release lever spring |
41 | 击锺 / Hammer | 42 | 左击锤簧 / Hammer spring, left | 43 | 右击锤簧 / Hammer spring, right | 44 | 射击选择控制齿轮轴 / Notched disk |
45 | 紧固弹簧 / Compression spring | 46 | 导引片 / Index plate | 47 | 滑架 / Slide | 48 | 左保险杆 / Safety lever, left |
49 | 右保险杆 / Safety lever, right | 50 | 弹匣解脱柄 / Magazine release | 51 | 弹匣解脱柄弹簧 / Magazine release spring | 52 | 弹匣解脱柄转轴 / Magazine release axle |
53 | 空仓挂机 / Bolt catch | 54 | 空仓挂机簧 / Bolt catch spring | 55 | 空仓挂机滚柱 / Roll pin,bolt catch | 56 | 扳机组后板 / Backplate |
57 | 缓冲器 / Buffer | 58 | 握把底板 / Pistol grip cover | 59 | 弹匣体 / Magazine housing | 60 | 托弹板 / Follower |
61 | 弹匣簧 / Magazine spring | 62 | 托弹簧底座 / Locking plate | 63 | 弹匣底板 / Floor plate | 64 | 附件安装导轨 / Picatinny rail, short |
65 | 导轨紧因螺钉 / Cylindrical screw (2x) | 66 | 附件安装导轨 / Picatinny rail, long | 67 | 导轨紧因螺钉 / Cylindrical screw (2x) | 69 | 背带 / Carrying sling, UMP complete. |
